This 12V 100Ah LiFePO4 battery is equipped with high-grade cells, ensuring exceptional performance. The built-in BMS offers reliable security protection, while the IP65 rating provides complete waterproof and dustproof capabilities. With the ability to connect up to four batteries in series, it's possible to create a powerful 48V power system.
Fast charge capability: Very fast charging capability up to 100A.
Low self discharge: <3% per month @ 20°C.
Completely maintenance-free: Maintenance-free throughout battery lifetime saves OPEX for the users.
Intelligent Integrated Battery Manage System(BMS): Protects the cells from overvoltage, undervoltage, overcurrent,
over-temperature, short-circuit, etc, which ensures safety and reliability and prolongs the service life.
High safety & stable performance: No explosion and no fire under collision. No risk of leakage.
24V 48V abailable: Up to 4 batteries in series to form a 48V power system.
| Model | SPF24V100-DST |
| Model Description | Standard Type |
| Nominal Voltage | 12.8V |
| Nomina capacity | 100Ah |
| Energy (Watt-hours) | 1280Wh |
| Cell Chemistry | LiFePO4 |
| Maximum Charge Current | 100A |
| Maximum Continuous Discharge Current | 100A |
| Peak Discharge Current | 200A (3s) |
| Cycle Life | >2000cycles (DOD80%) |
| Charge Temperature Range | 0 ~ 45°C |
| Discharge Temperature Range | -20 ~ 55°C |
| Storage Temperature | -5 ~ 35°C |
| Heating Temperature Range | / |
| DIN Group Size | H7/H8 |

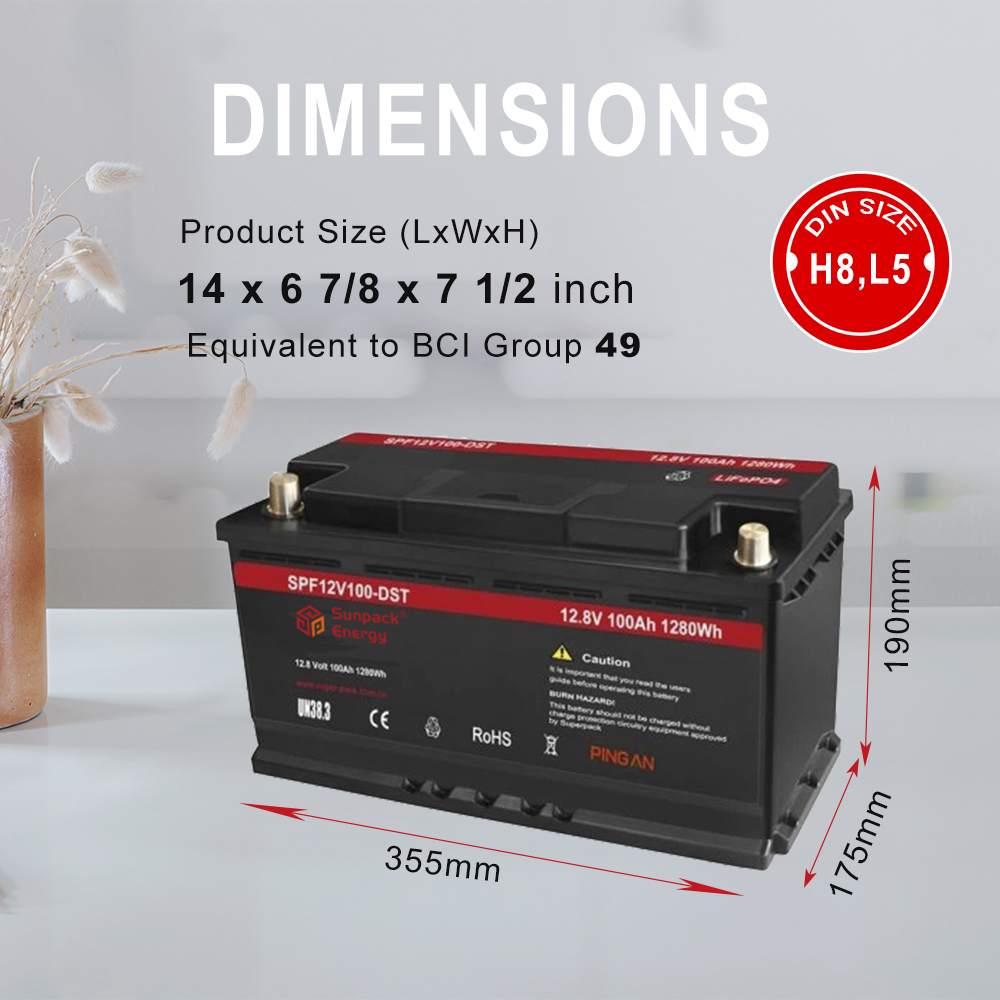

| Dimensions (L*W*H) | 318*175*190/ 355*175*190mm |
| Weight | 12.6/ 12.8kg |
| Case Material | ABS |
| Terminal Type | DIN |
| Enclosure Protection | IP65 |
| Maximum Batteries in Series | 4 |
Lead-Acid Batteries Replacement, Recreational Vehicle (RV) , motorhome, marine, trolling motors, golf carts, low speed vehicle, etc.
