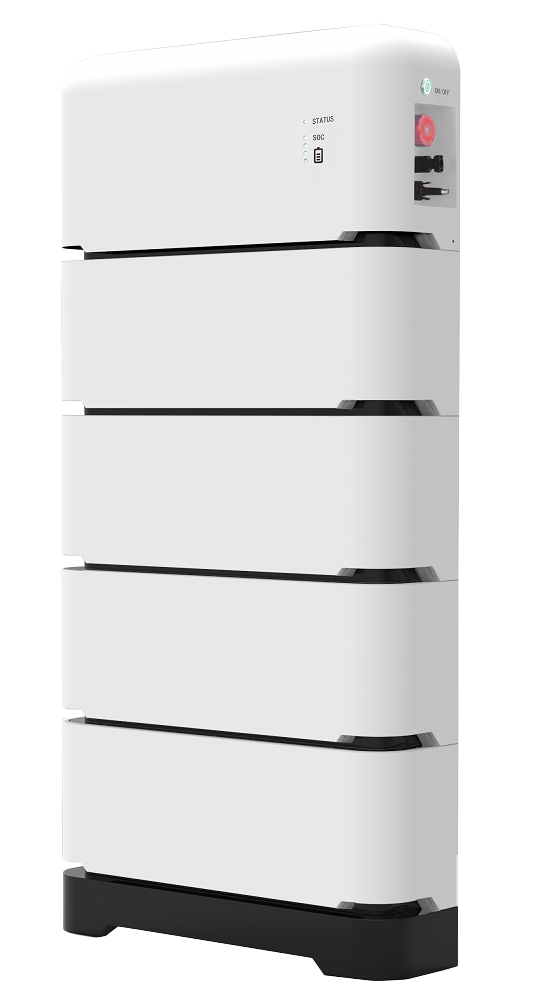

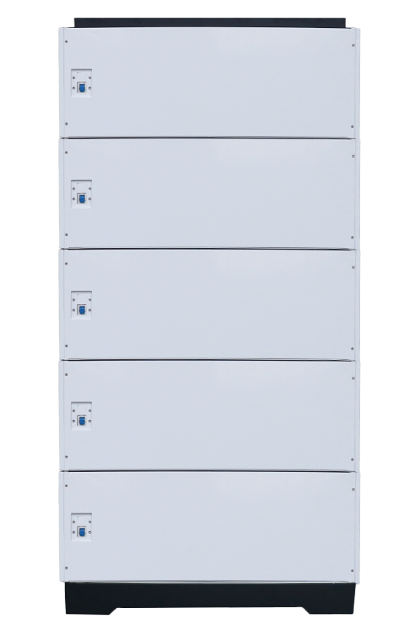

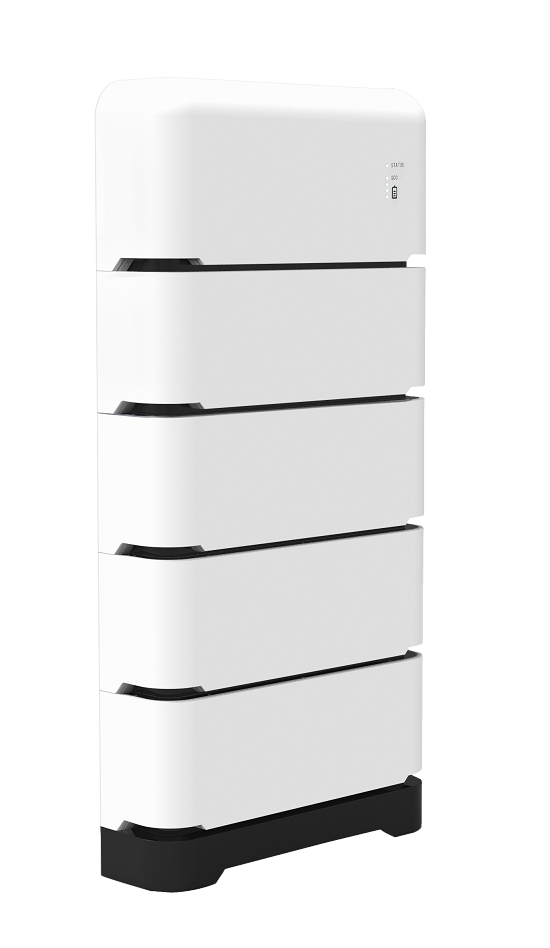

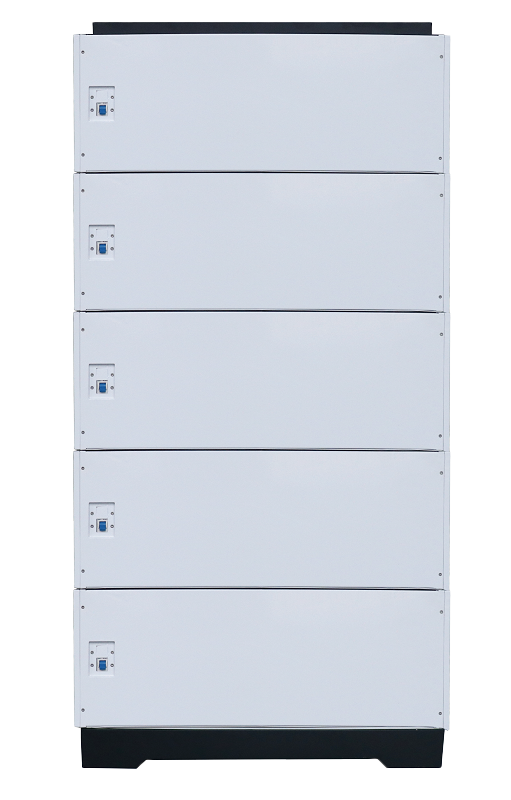

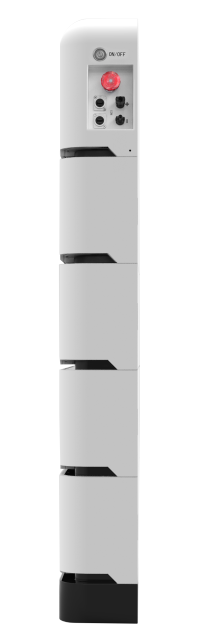

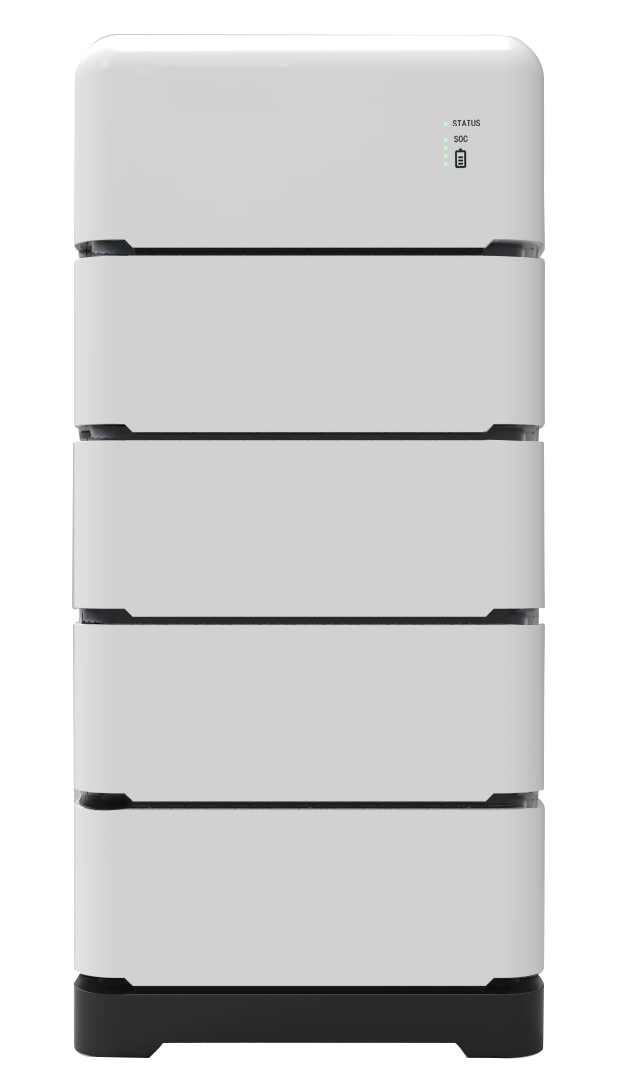

204V 52Ah High Voltage Home Solar LiFePO4 Lithium Battery

No.SPF204V50-HV
This slim-designed 204V 52Ah LiFePO4 battery system features convenient plug-and-play stacking capability, eliminating the need for messy cables connection. High voltage with lower current can enhance efficiency and minimize energy losses.
  • 204V50Ah High Voltage Energy Storage Battery
  • 204V50Ah High Voltage Energy Storage Battery
  • 204V50Ah High Voltage Energy Storage Battery
  • 204V50Ah High Voltage Energy Storage Battery
  • 204V50Ah High Voltage Energy Storage Battery
  • 204V50Ah High Voltage Energy Storage Battery

DESCRIPTION

As energy storage plays a vital role in the transition towards renewable energy and power transformation, Sunpack proudly introduces the latest addition to its product line - the 204V52Ah energy storage battery. This innovative solution provides a secure, cost-effective and efficient way for homeowners to store an excess of energy generated by their rooftop solar panels for future use. With the ability to power homes during blackouts or periods of high energy demand, the Sunpack energy storage battery truly delivers on its promise of providing free energy.

Investing in this product brings homeowners closer to energy self-sufficiency and, as a result, energy independence. Complementing solar energy storage systems with its outstanding performance, the SPF204V52-HV series battery pack is a floor-mounted unit designed to optimize energy usage and supply power to homes whenever required.

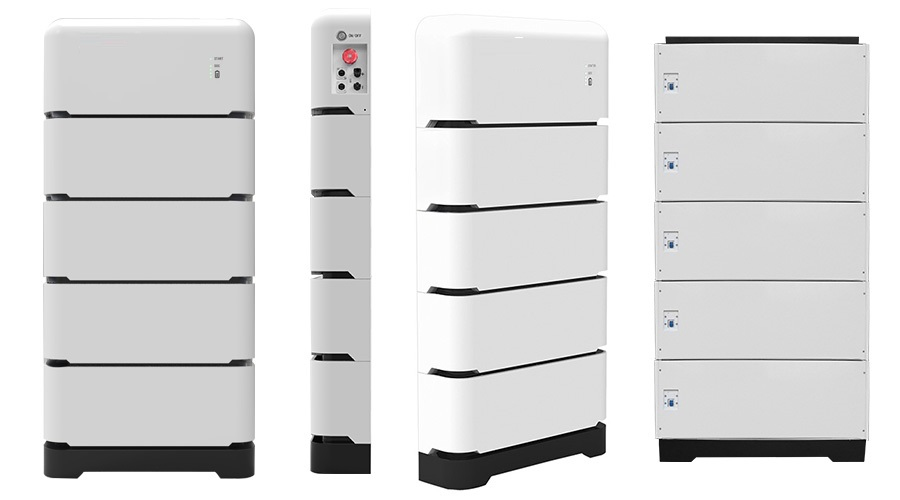

Product Overview Graphic
Features:
  • Slim design –  Saving space. This lithium battery system is floor-mounted and firmly fixed to the wall.

  • High voltage system – Enhancing efficiency and responsiveness with lower current levels, minimizing energy losses during charge and discharge cycles.

  • Grade A Cells – Using high quality lithium iron phosphate battery as the main body of energy storage, with feature of large capacity, light weight and and higher safety.

  • Independent BCU (Battery Control Unit), in combination with the BMU of each battery module, offers complete protection including safeguards against over-voltage, over-temperature, overload, and overcharging.

  • Good compatibility – Standard communication protocol, CAN and RS485, compatible with most popular hybrid and off-grid inverters in the market.

  • Easy installation – Plug and play assembly, no more cables between modules, enhancing usage security.


Technical Parameters:
Model SPF204V50-HV
Battery Type LiFePO4
Nominal Voltage 204.8V
Nominal Capacity 50Ah
Nominal Energy 10.24kWh
Max. Continuous Charge Current 35A@20°C
Max. Continuous Discharge Current 50A@20°C
Max. Output Power 10.24kW
Dimension W*D*H 600x160x1120mm
Weight 108kg
Charging Temperature Range 0-50°C
Discharge Temperature Range -20-60°C
Cycle Life 6000 cycles @ 80% DOD
Designed Life-span 10 years
HVDC Controller 1pcs
Battery Modules 4pcs or 2pcs
Communication mode CAN, RS485/ETH Optional
Inverter Choosing On/Off Grid Single/3 phases inverter
Housing material Cold rolled steel sheet
Enclosure IP54
Installation Floor mounting, fixed with wall

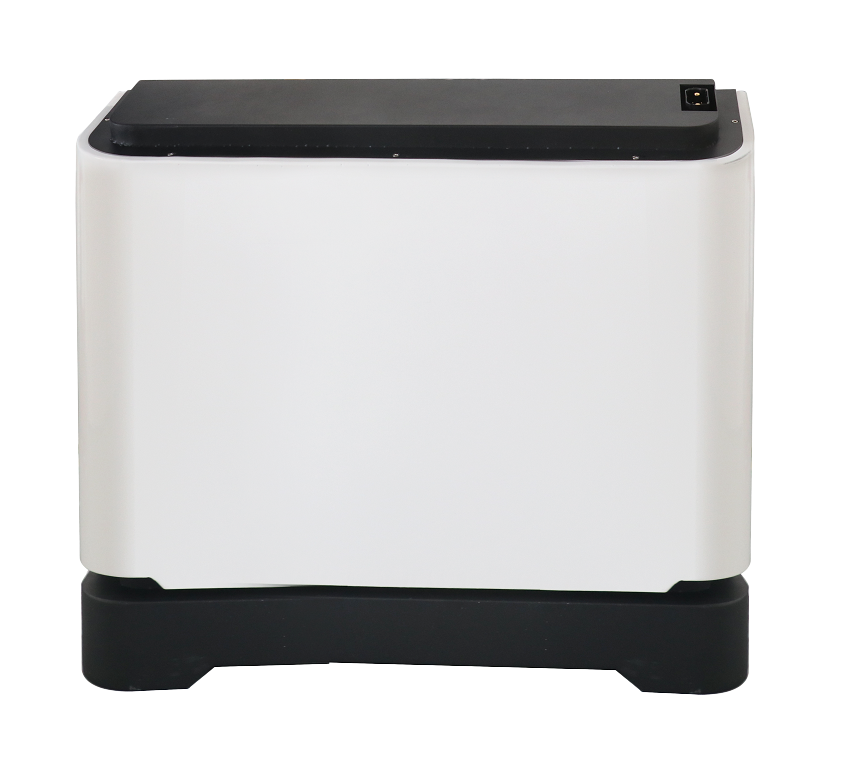

Battery Module (has 2 styles)
Nominal Voltage 25.6V 102.4V
Nominal Capacity 50Ah 50Ah
Assembly Method 16S1P 32S1P
Battery Modules in Series 4pcs 2pcs

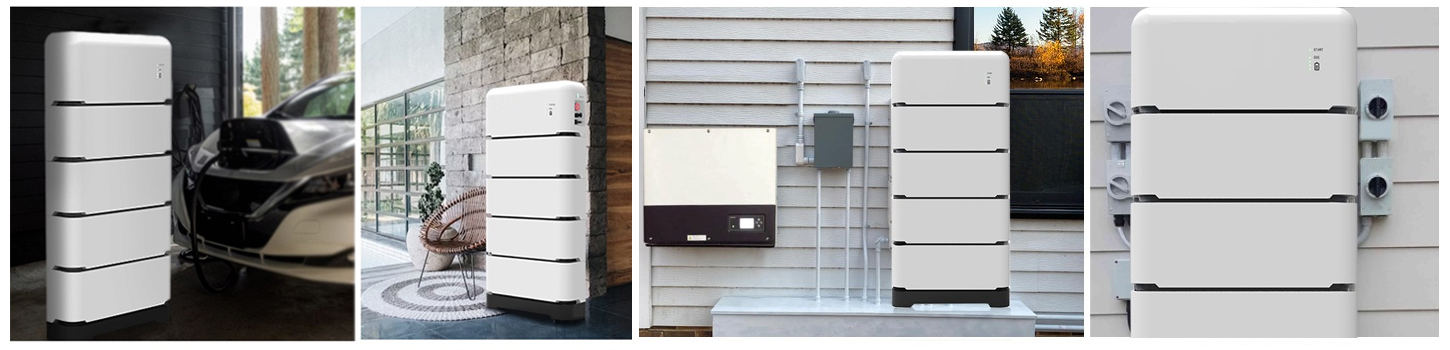

application scenarios of 204V50Ah solar lithium battery
