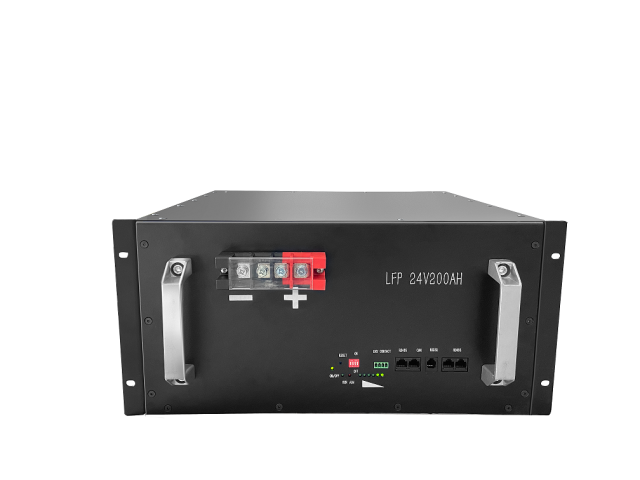

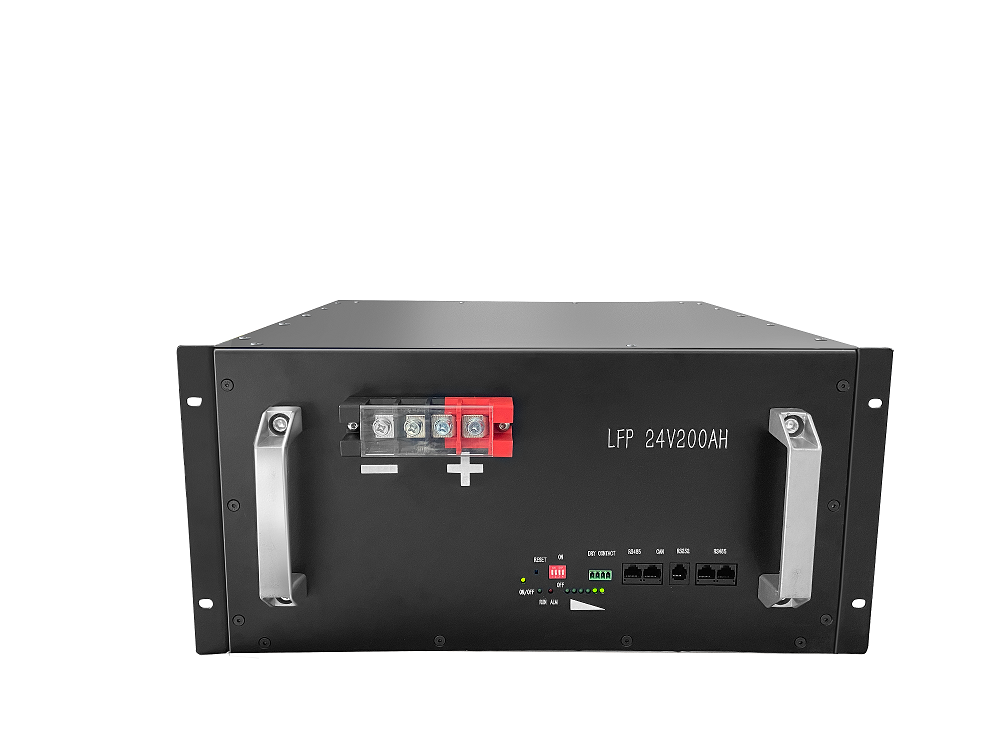

24V 200Ah Rack Mounted Solar Power Storage LifePO4 Lithium Battery

No.LFP 24V200AH
The Sunpack 24V 200Ah LFP rack mounted Solar Storage Battery  is a premium product specially designed for villa or corporate clients. Its sleek design allows for rack mounting in either server or telecom cabinets, manufactured to meet the industry standard with a height of 5U.
  • rack mounted

DESCRIPTION

Our server rack-mounted “blade-style” lithium-ion battery packs are an innovative product that provides a dependable and secure power source for your critical equipment. This advanced battery system features dedicated battery management circuitry, high voltage lithium battery cells, and a convenient rack-mountable enclosure. With its super-easy-to-install design, this blade-style battery pack is the ultimate all-in-one solution for your power needs.

When it comes to powering your home or business, lithium-ion rack-mounted batteries have become a widely favored option. This modular system provides reliable, long-term storage with high capacity and rapid charge/discharge times. Designed for optimal safety, the high-efficiency LFP cells allow for effortless maintenance and easy scalability for future growth, maximizing your potential for clean and abundant on-grid or off-grid power.

Features:
  • High Energy Density – LiFePO4 batteries offer a good balance between energy density and safety, making them suitable for a wide range of applications.
  • Long Cycle Life – LiFePO4 batteries  have a longer lifespan, often exceeding 2000 charge-discharge cycles without significant capacity degradation, typically lasting up to 10 years with regular use. They also have a stable chemical structure and are less prone to overheating, which makes them safer to use. This makes them a cost-effective option in the long run.
  • Modular Design – The "stackable" feature implies that these batteries are designed to be connected together in parallel or series to create larger battery packs. This modular design allows for flexibility in configuring battery systems to meet specific energy storage needs.
  • Scalability – Users can easily increase or decrease the capacity of their energy storage system by adding or removing individual battery units. This makes them adaptable to various scenarios, from small-scale residential solar systems to large commercial installations.
  • Built-in BMS – The intelligent BMS provides comprehensive protection for the battery, including over-voltage, under-voltage, over-current, and over-temperature protection. The BMS helps ensure the safety and optimal performance of the battery.
Parameters:
Model LFP 24V200AH
Nominal Voltage 25.6V
Rated Capacity 200Ah
Nominal Energy 5120Wh
Dimensions (LxDxH) 482*432*220mm
Height in 19" Rack 5U
Approx. Weight: 51kg
Internal Resistance 35mΩ @50%SOC
Maximum Charge Current 100A
Maximum Discharge Current 100A
Charging Cut-Off Voltage 28.8V (3.6V/cell)
Discharge Cut-off Voltage 21.6V (2.7V/cell)
Standard charge 0.2C constant current (CC) charge to 28.8V then CV
Standard Discharge Constant Current 0.2C
Discharge temp. -20°C~60°C
Charge temp. 0°C~45°C
Communication protocol RS232/RS485
Batteries In Parallel 12 Batteries at Most are Recommended

Applications:
Suitable for stand-alone houses, server rooms, telecommunication towers, and micro power plants.
