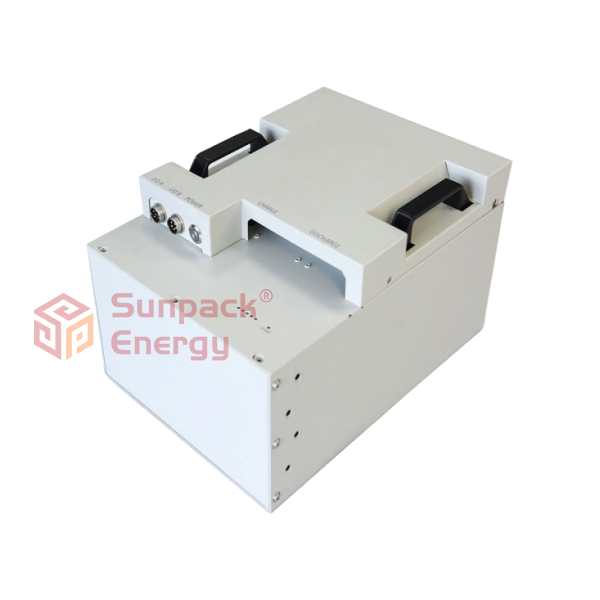

24V60Ah Fast Charge LiFePO4 Lithium ion Cell Industrial AGV Battery

No.SPF24V60
This 24V 60Ah LiFePO4 lithium ion cell battery boasts fast charging, deep cycling, light weight, and high power as its core features.
  • 24V60Ah Fast Charge LiFePO4 Lithium ion Cell Industrial AGV Battery
  • 24V60Ah Fast Charge LiFePO4 Lithium ion Cell Industrial AGV Battery

DESCRIPTION

This 24V 60Ah Lithium-Ion Cell Battery uses the latest Lithium Iron Phosphate (LFP) technology, with a built-in BMS for overall protection. Though lighter in weight, it packs a powerful output, making it the perfect battery for AGV (Automated Guided Vehicle), EV (Electric Vehicle), Industrial robots, and other similar applications. At Sunpack, we offer a variety of 24V, 48V, and 72V drop-in lead-acid replacement batteries to choose from along with customization services. If you have any queries regarding our products, feel free to contact us, and we will work out the perfect solution for you.

The LiFePO4 battery is undoubtedly the most advanced rechargeable battery available in the world today. Its numerous advantages include a compact size, light weight, high energy density, long lifespan, eco-friendliness, reliable performance, and absolute safety. Hence, it is considered the perfect power source for high-end instruments.  Here is the detailed specification of this 24V 60Ah battery pack.

Key features of 24V60Ah LiFePO4 AGV Battery

Key Features:
  • Long Lifespan and Maintenance Free: With a cycle life of over 6000 times and a lifetime of more than 10 years, you won't need to replace your battery frequently. This translates to a lower overall cost of ownership.

  • Fast Charging and Low Self-discharging: With the capability to accept a recharge current of 1C, the complete recharge process can be accomplished in a mere 1-2 hours. This substantial advancement is a drastic departure from the lengthy overnight recharging demands of traditional lead acid batteries.

  • Stable Power Performance: Flat voltage curve indicates that the performance of the vehicle stays consistent during the entire process of discharge.


Specifications:
Model SPF24V60
Cell Chemistry LiFePO4
Nominal Voltage 25.6V
Nominal Capacity 60Ah
Energy 1536Wh
Internal Resistance ≤30mohm
Maximum Charge Current 120A
Maximum Continuous Discharge Current 30A
Charge Cut-off Voltage 29.2V
Housing Material Metallic
Communication Port RS485 interface, 5-pin aviation plug
Weight 25kg
Dimensions L325*W237*H187mm L333*W241*H214mm


Application scenarios:
Application scenarios of 24V60Ah LiFePO4 AGV Battery
