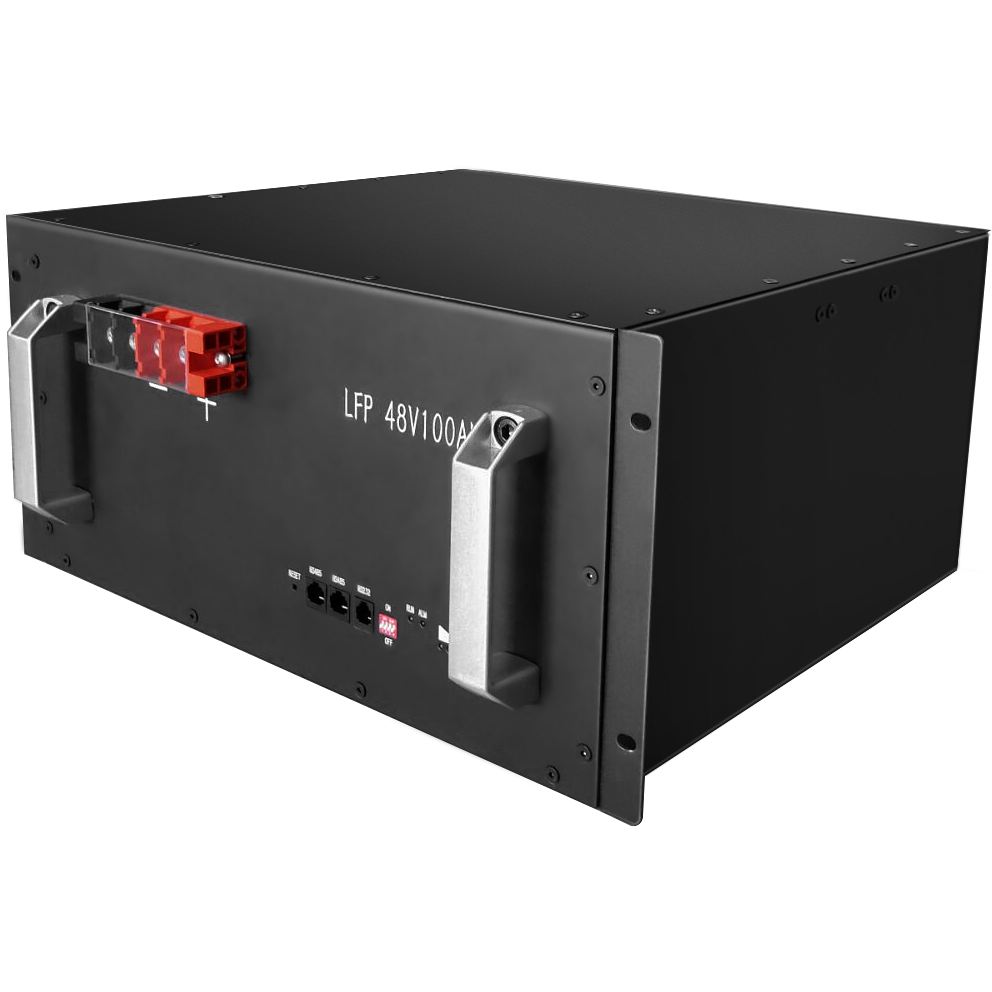

The 48V 100Ah LFP LiFePO4 server rack battery is compact, well-designed, and cable/accessories ready for installation. ≥6000 cycles deep cycle & designed for up to 10-year life.
Intelligent Battery Management System (BMS) is capable of managing and monitoring cell information such as voltage, current, and temperature. It helps protect the battery from issues like overcharging, deep discharge, overloading, overheating, and short circuits, leading to an extended battery lifetime.
Flexible: With its modular design and easy expandability, this system can accommodate up to 15 units in parallel, boasting a total capacity of 72kWh. Perfect for both residential and small and medium commercial & industrial applications, as well as other energy storage systems aimed at improving self-consumption ratios.
Low internal resistance and high current: The battery features a remarkably low internal resistance, which allows it to perform exceptional continuous high current discharge operations.
Compatible: CAN/RS485/RS232 Communication Protocol can be compatible with most inverters in the market, such as Growatt, Goodwe, Sungrow, Deye, Huawei, Luxpower, Solis, Solaredge, Fronius, SMA, ABB and so on.
Technical Parameters:
| Model | SPF48V100-SM |
| Cell Chemistry | LiFePO4 |
| Nominal Voltage | 48V |
| Nominal Capacity | 100Ah |
| Nominal Energy | 4800Wh |
| Approx. weight | 48.6kg |
| Dimensions (L x W x H) | 432.2*482.6*222mm |
| Height in 19" Rack | 5U |
| Internal resistance | 20mΩ |
| Efficiency | 0.99 |
| Constant discharge current | 100A |
| Constant charge current | 100A |
| Discharge temperature range | -20~60°C |
| Charge temperature range | 0~45°C |
| Peak discharge power | 7.68kW@25°C,100ms |
| Max discharge Power | 4.8kW@25°C |
| Communication protocol | RS232/RS485 |
