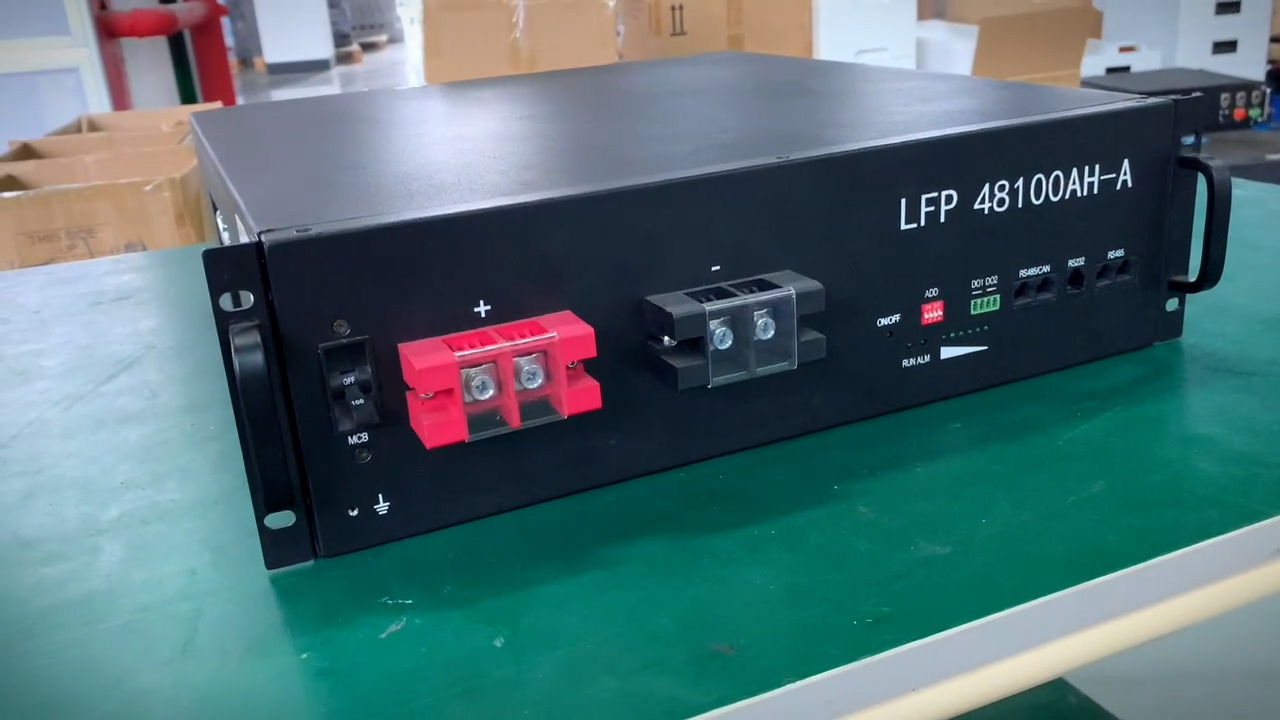

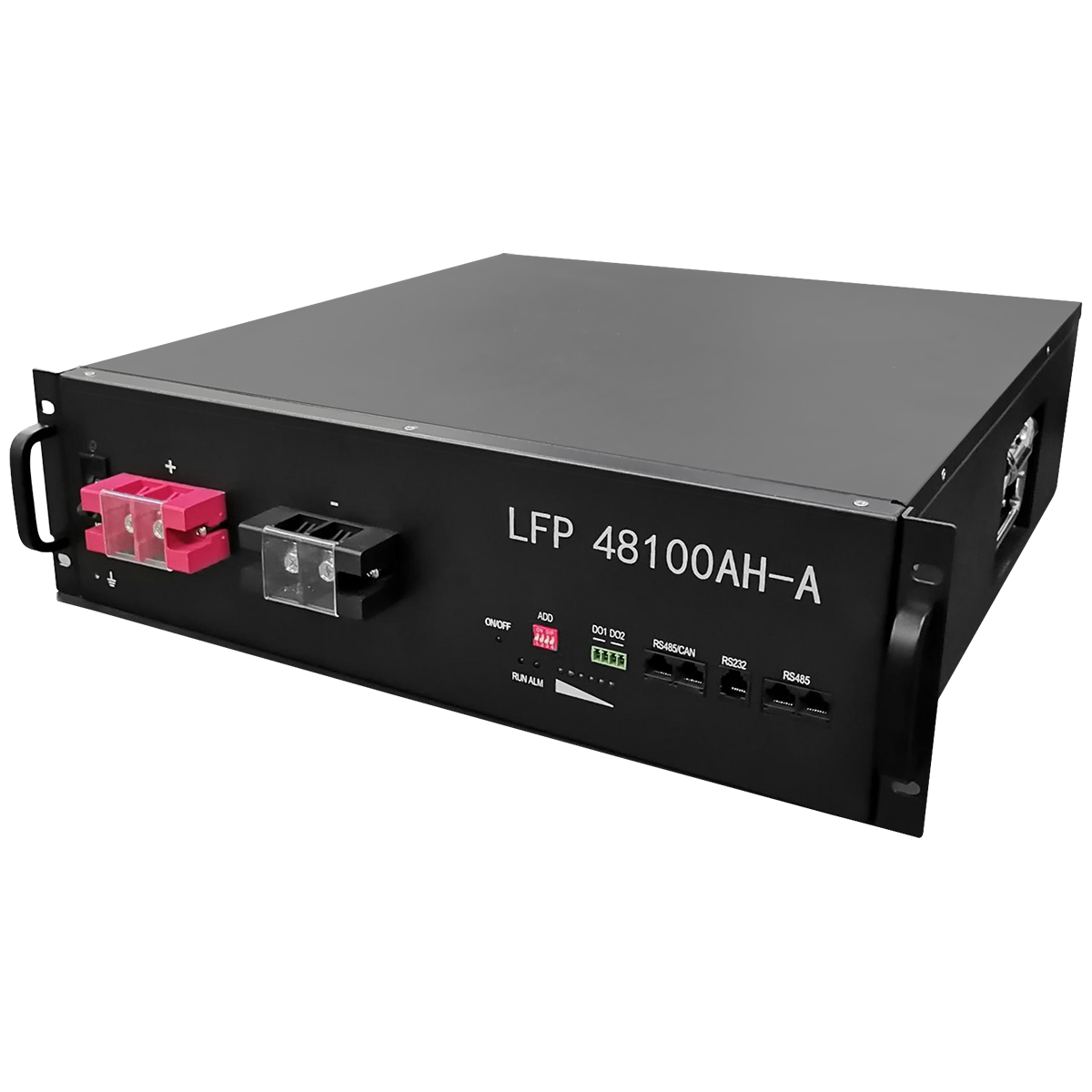

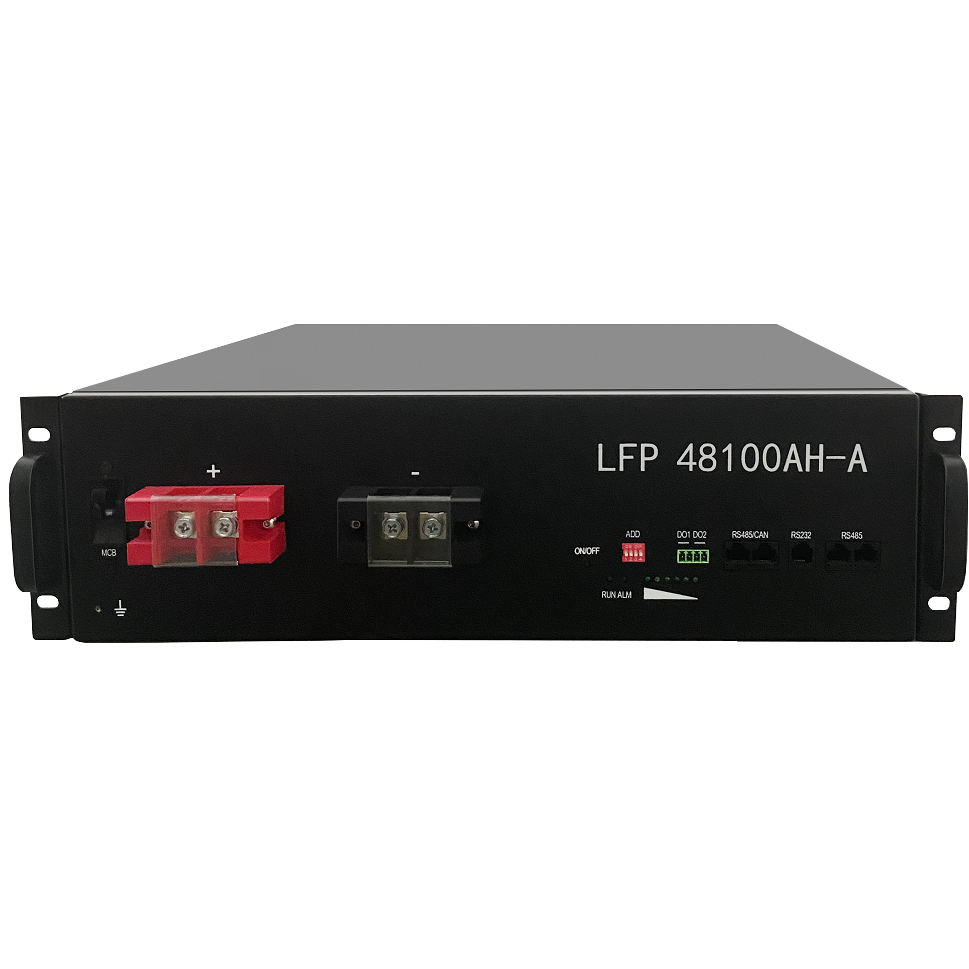

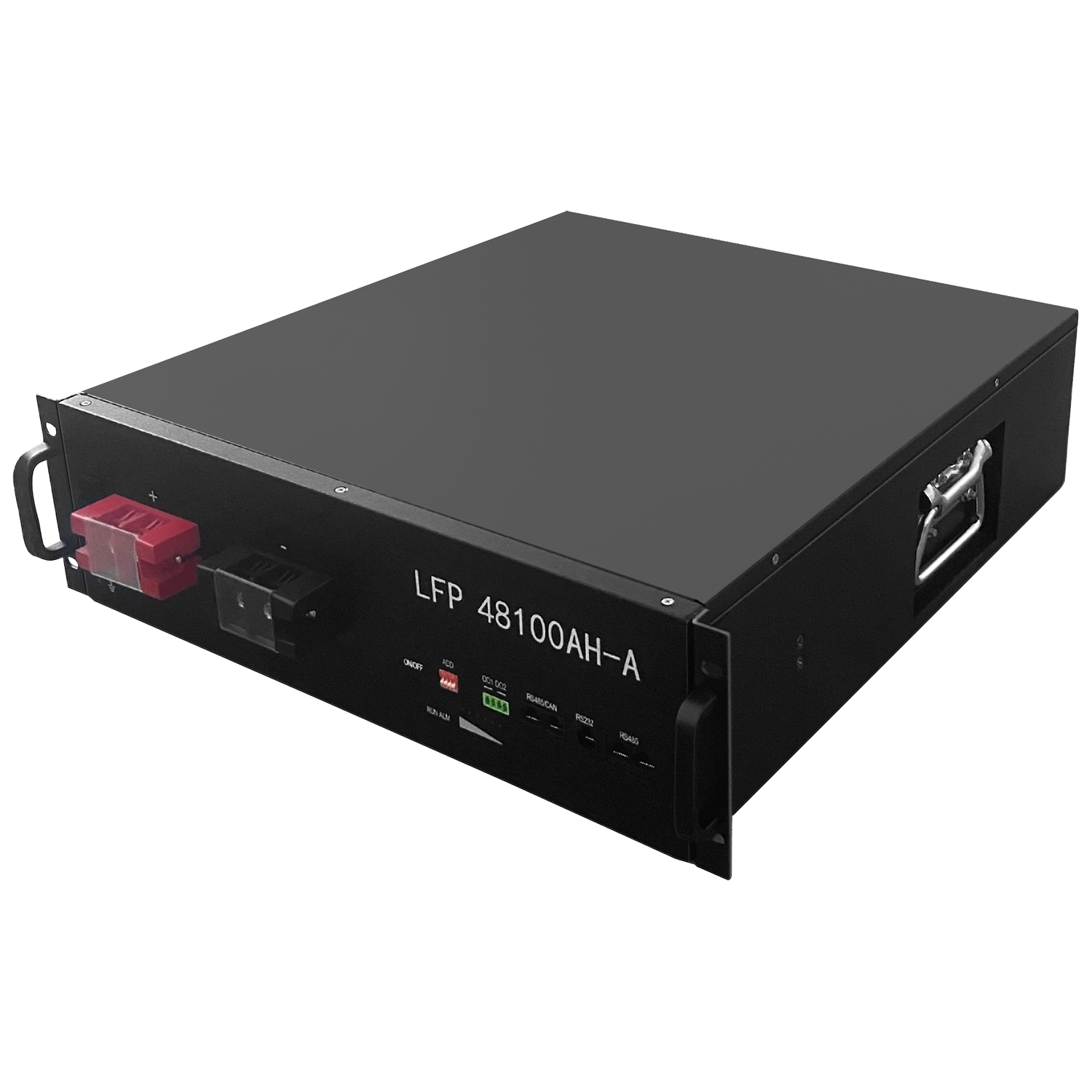

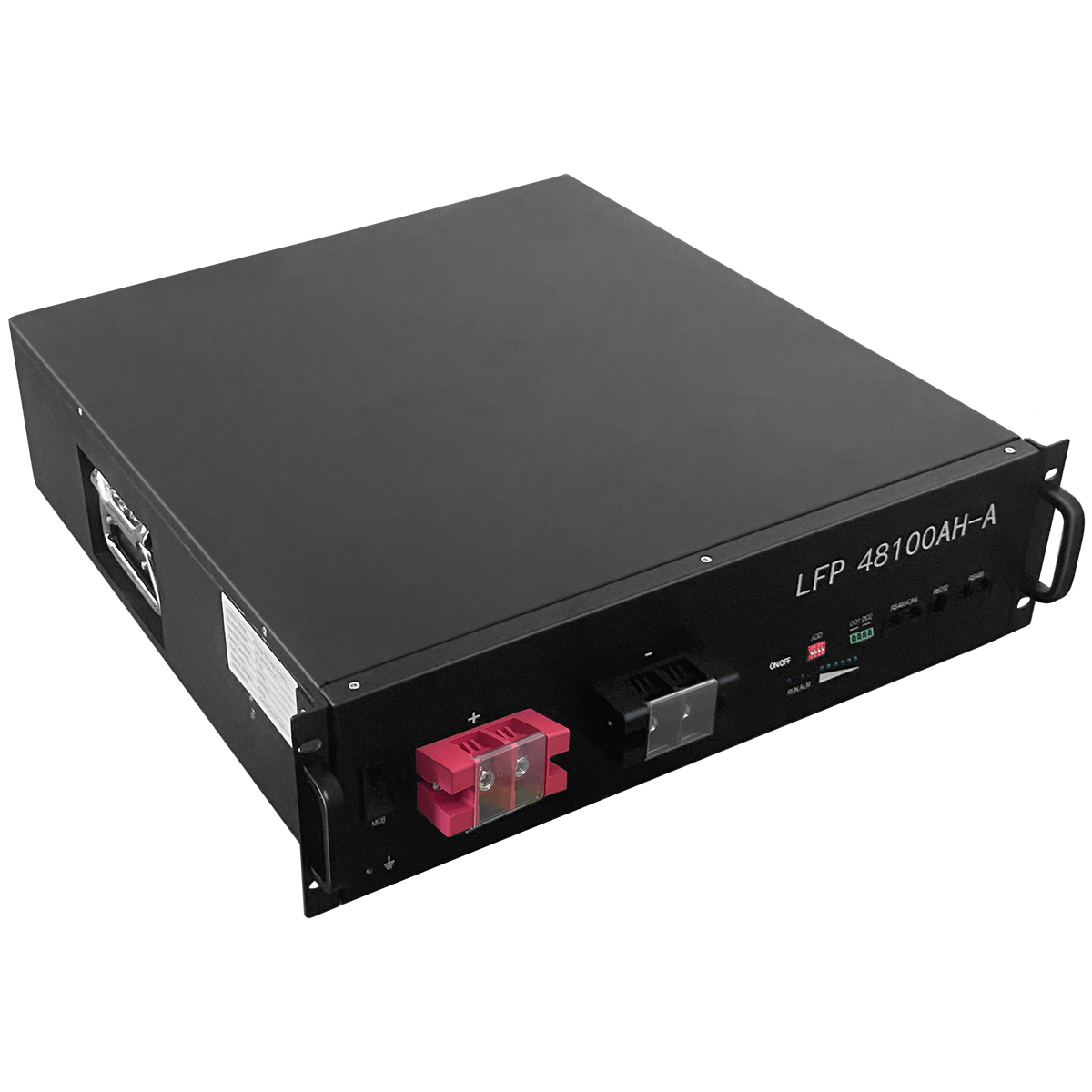

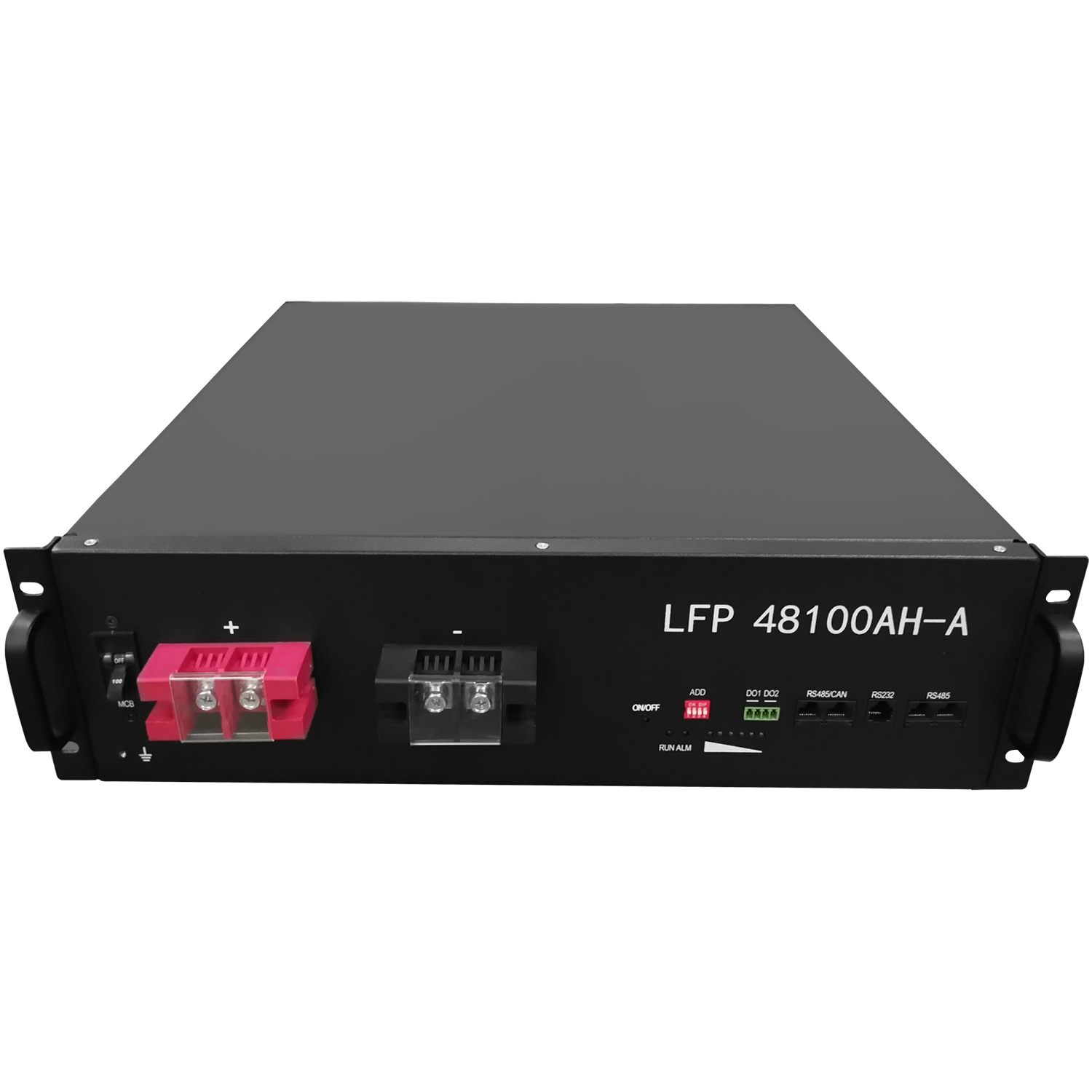

48V100Ah Lithium ion Battery (LiFePO4), deep cycle rechargeable battery, built-in BMS, suitable for energy storage system, UPS, solar systems and off grid application etc.
Features:
LiFePO4 Chemistry: LiFePO4 or lithium iron phosphate battery, is a type of lithium-ion chemistry of rechargeable battery that uses lithium iron phosphate as its cathode material, known for its stability, high thermal tolerance, and enhanced safety compared to other lithium-ion chemistries like NCM.
Built-in BMS: The intelligent BMS provides comprehensive protection for the battery, including over-voltage, under-voltage, over-current, and over-temperature protection. The BMS helps ensure the safety and optimal performance of the battery.
Modular Design: The "stackable" feature implies that these batteries are designed to be connected together in parallel or series to create larger battery packs. This modular design allows for flexibility in configuring battery systems to meet specific energy storage needs.
Long Service Life: Lead-acid batteries can only use 200-400 cycles, and lithium deep cycle battery can reach 4000 cycles, and in the state of full charge and full discharge can cycle more than 1500 cycles, the service life of lead-acid battery is 3 times.
Light & Practical: Lithium-ion battery weighs only 30% as much as lead-acid battery, only 45kg easy to carry and install.
| Model | LFP 48100AH-A |
| Cell Chemistry | LiFePO4 |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 100Ah |
| Nominal Energy | 5.12kWh |
| Dimensions (LxDxH) | 482*470*130.5mm |
| Height in 19" Rack | 3U |
| Approx. Weight: | 45kg |
| Internal Resistance | 35mΩ |
| Efficiency | 0.99 |
| Nominal Charge Current | 20A |
| Max. Continuous Charge Current @25°C | 100A |
| Nominal Discharge Current | 50A |
| Max. Continuous Discharge Current @25°C | 100A |
| Discharge Cut-off Voltage | 43.2V |
| Max. Continuous Discharge Power | 5.12kW@25°C |
| Peak Discharge Power | 7.68kW@25°C,100ms |
| Charge Temperature Range | 0°C~45°C |
| Discharge Temperature Range | -20°C~60°C |
| Communication protocol | CAN/RS485/RS232 |
| Inverter Brand | Inverter Type | Communication | Application | Installation |
 |
sunny island 6.0H | Powerwall Battery | ||
 |
Multiplus 48V | CAN | On/off-grid* | Powerwall / Rackmount Battery |
 |
SUN-SG01LP1 series | CAN / RS485 | On/off-grid* | Powerwall / Rackmount Battery |
| SUN-SG03LP1 series | CAN / RS485 | On/off-grid* | Powerwall / Rackmount Battery | |
 |
SPH3000 - 6000 | CAN | On/off-grid | Powerwall / Rackmount Battery |
| SPF2000 - 5000 | RS485(9600) | On/off-grid | Powerwall / Rackmount Battery | |
 |
GW-BP | CAN | On/off-grid | Powerwall / Rackmount Battery |
| SBP GW-ES | CAN | On/off-grid | Powerwall / Rackmount Battery | |
| EM | CAN | On/off-grid | Powerwall / Rackmount Battery | |
 |
Xtender 48V serie | CAN | On/off-grid | Powerwall / Rackmount Battery |
 |
Infinisolar series 48V | RS485(9600) | On/off-grid | Powerwall / Rackmount Battery |
| Axpert series 48V | RS485(9600) | On/off-grid | Powerwall / Rackmount Battery | |
 |
RHI series | CAN | On/off-grid | Powerwall / Rackmount Battery |
 |
LXP Hybrid 6K/8K | CAN | On/off-grid | Powerwall / Rackmount Battery |
 |
BD series | CAN | On/off-grid | Powerwall / Rackmount Battery |
 |
SMT-5K-TL-LV | CAN | On/off-grid | Powerwall / Rackmount Battery |
 |
Conext XW Pro series | CAN | Debugging in progress | |
 |
HYD series | RS485(115200)/CAN | Debugging in progress | |
 |
Any-grid PSW-H-5kW-230/48V | RS485(9600) | Debugging in progress | |
 |
SH5K | CAN | Debugging in progress | |
 |
BK-BP Series | CAN | Debugging in progress |
