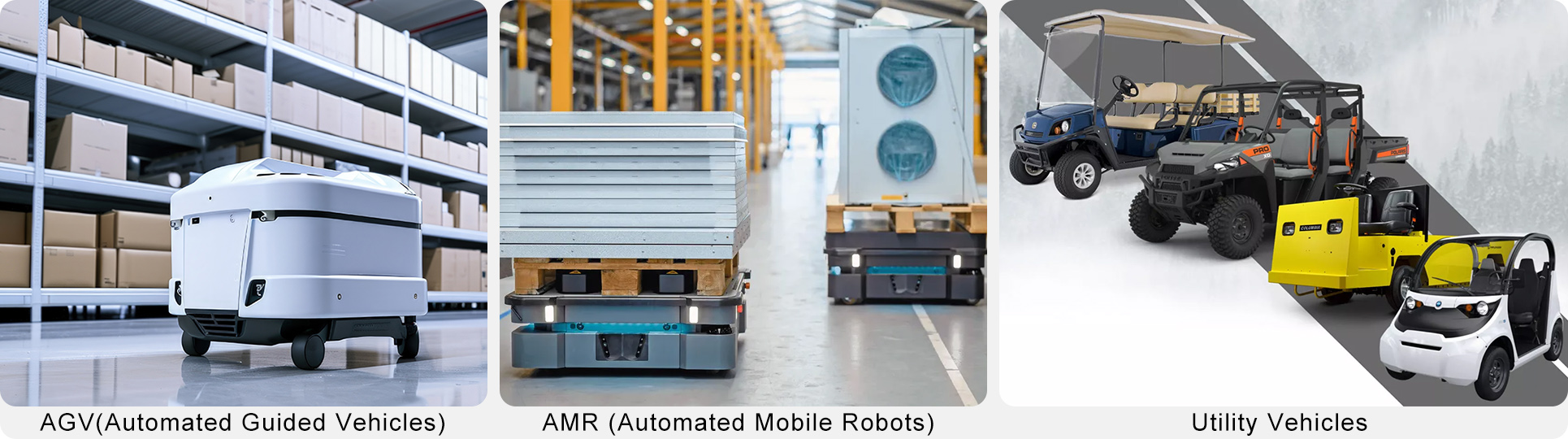

Automated Guided Vehicles (AGVs) have become increasingly popular across industries such as manufacturing, warehousing, and logistics where efficient transportation of materials and products is paramount. Our lithium-ion battery systems for AGVs are specifically designed to meet the demanding requirements of these applications, delivering reliable and long-lasting power.
Our AGV battery systems are engineered to be lightweight, compact, and highly durable, guaranteeing optimal performance even in challenging environments. With advanced features that include intelligent battery management systems and fast charging capabilities, our AGV battery solutions are primed to support your operations and help you meet your productivity goals.

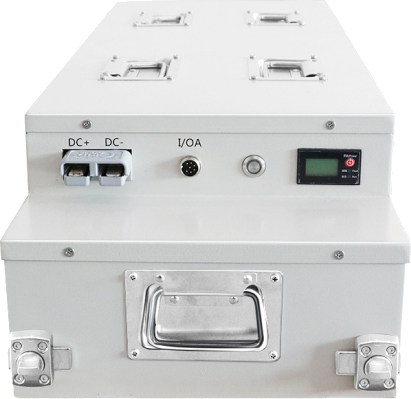

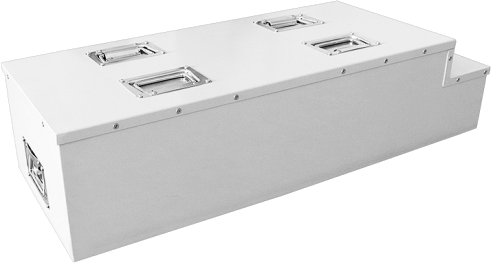

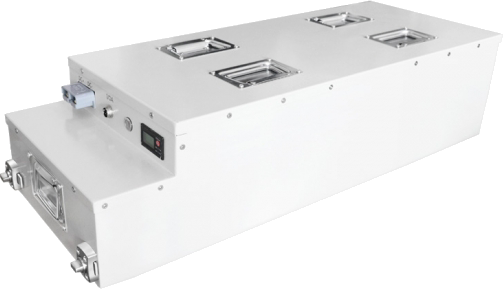

This 48V 120Ah lithium ion battery uses the most advanced lithium iron phosphate technology and is equipped with a comprehensive BMS for overall protection. It is not only lighter in weight but also more powerful.
Sunpack has a variety of 12V 24V 48V drop in replacement batteries to choose from. We also provide customized battery services, such as specific voltage, capacity, current, dimensions, etc. Please contact us and we will work out the perfect solution for you.
Key Features
Plug-and-Play: One stop replacement for lead acid battery.
Maintenance-Free: No Battery Swapping, Watering, Washing, or Equalizing. Also, there is no need for an additional charging infrastructure.
Longevity: Over 2000 times cycle life at 80% depth of discharge (DOD), which is 2-3 times longer than conventional lead-acid batteries, ensuring long-lasting performance.
Improved Safety Performance: Our intelligent Battery Management System (BMS) offers comprehensive protection to your battery, with features like over-voltage, under-voltage, over-current, and over-temperature protection. This ensures optimal performance while prioritizing safety.
Environmentally friendly: Free of sulfation, lead, and acid.
| Model | SPF48V120 |
| Cell Chemistry | LiFePO4 |
| Nominal Voltage | 48V |
| Nominal Capacity | 120Ah |
| Energy | 5.76kWh |
| Dimensions (L*W*H) | 770*290*190mm |
| Weight | 80kg |
| Internal Resistance | ≤100mΩ |
| Operating Voltage Range | 46.5-54.7V |
| Continuous Charging Current | 60A |
| Continuous Discharge Current | 120A |
| Maximum Discharge Current | 125A |
| Cycle Life | >2000 times |
| Communication Protocol | RS485 |
| Charge Temperature Range | 0°C ～+45°C |
| Discharge Temperature Range | -20°C ～+60°C |
| Optimum Storage Temperature Range | 10°C ～+45°C |
| Ingress Protection Rating | IP54 |
