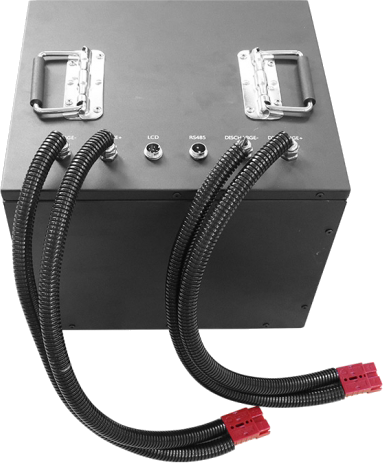

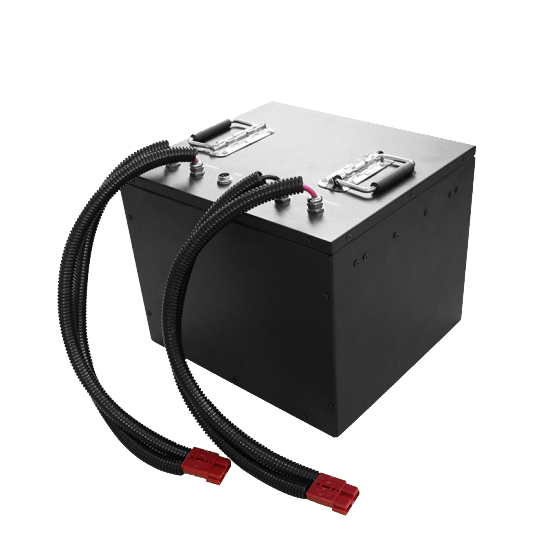

48V 72Ah Rechargeable Lithium LiFePO4 Battery Pack for AGV

No.48V72Ah
This 48V 72Ah lithium battery pack utilizes cutting-edge lithium iron phosphate technology with a comprehensive battery management system (BMS) that provides comprehensive protection for the battery. At the same time, it also has two RS485 communication ports, which can meet both monitoring and cascading applications simultaneously.
  • 48V 72Ah Rechargeable Lithium LiFePO4 Battery Pack for AGV
  • 48V 72Ah Rechargeable Lithium LiFePO4 Battery Pack for AGV
  • 48V 72Ah Rechargeable Lithium LiFePO4 Battery Pack for AGV

DESCRIPTION

The use of Automated Guided Vehicles (AGVs) is gaining popularity in industries such as manufacturing, warehousing, and logistics due to their ability to transport materials and products efficiently. To meet the demanding needs of these applications, our lithium-ion battery systems are specifically designed to provide dependable and long-lasting power for AGVs.

This 48V 72Ah lithium battery pack utilizes cutting-edge lithium iron phosphate technology with a comprehensive battery management system (BMS) that provides comprehensive protection for the battery. At the same time, it also has two RS485 communication ports, which can meet both monitoring and cascading applications simultaneously. We also offer personalized battery solutions tailored to your needs, including customized specifications for voltage, capacity, current, dimensions, and more.
48V 72Ah Rechargeable Lithium LiFePO4 Battery Pack for AGV
Features:

  • Built-in BMS — The intelligent BMS provides comprehensive protection for the battery, such as over-voltage, under-voltage, over-current, and over-temperature protection, etc. ensuring the safety and optimal performance.

  • Most safe lifepo4 battery with car level standard — Super safe chemistry reducing the risk of explosion or combustion due to high impact, overcharging or short circuit situation.

  • Small size with light weight — About 1/3 the Weight of its Counterpart Lead-acid/SLA Battery, Much Lighter to Carry and Move.

  • Modular and quick plug design makes it easy to use.


Application

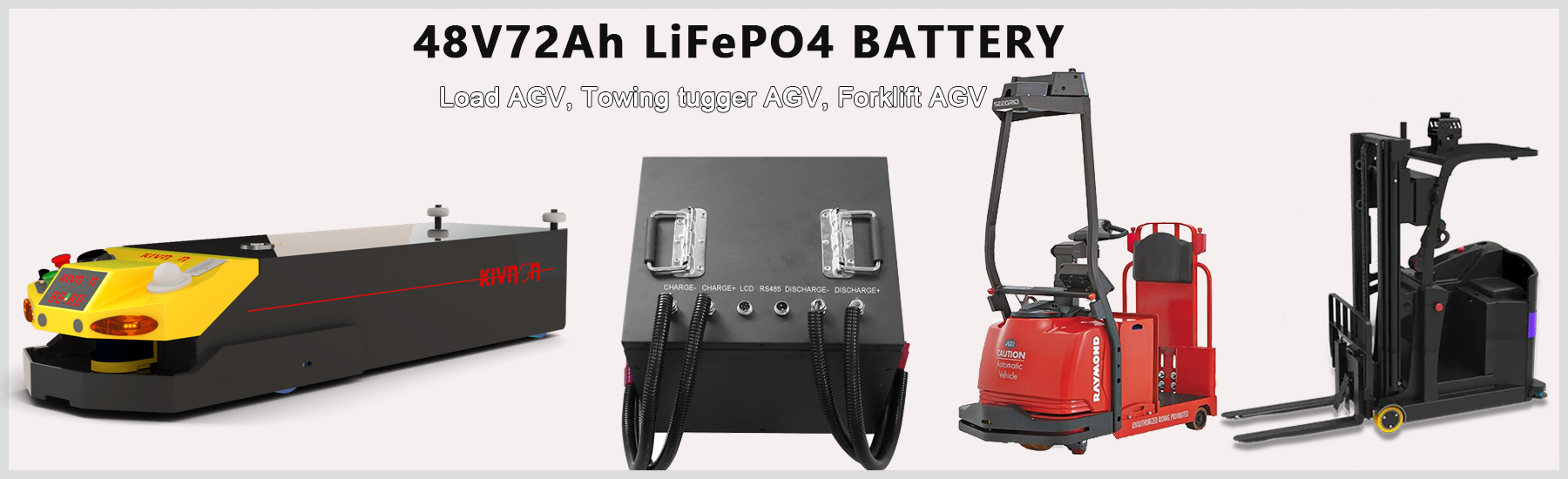

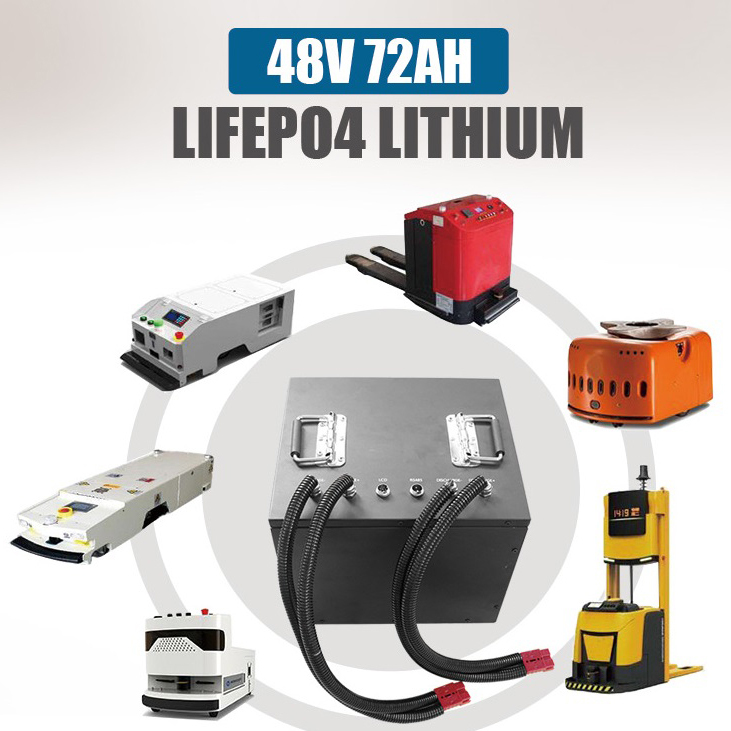

AGV (Automated Guided Vehicles), RGV (Rail Guided Vehicles), AMR (Automated Mobile Robots) , and other low speed vehicles.

Technical Parameters:
Items Values
Rated Voltage 48V
Nominal Capacity 72Ah
Energy 3456Wh
Cell Chemistry LiFePO4
Dimension 340*270*300mm
Weight 35.5kg
Maximum Charge Current 35A@20°C
Maximum Continuous Discharge Current 35A@20°C
Standard Charge 0.2C
Standard Discharge 0.2C
Charge Cut-off Voltage 54.75V
Discharge Cut-off Voltage 37.5V
Charge Temperature Range  0°C~+45°C
Discharge Temperature Range -20°C~+60°C
Internal resistance ≤50mΩ
Cycle life 1200 times
Terminals Anderson 50A
Communication RS485(PIN1:RS485A  PIN2:RS485B)
Housing material Iron(black)
