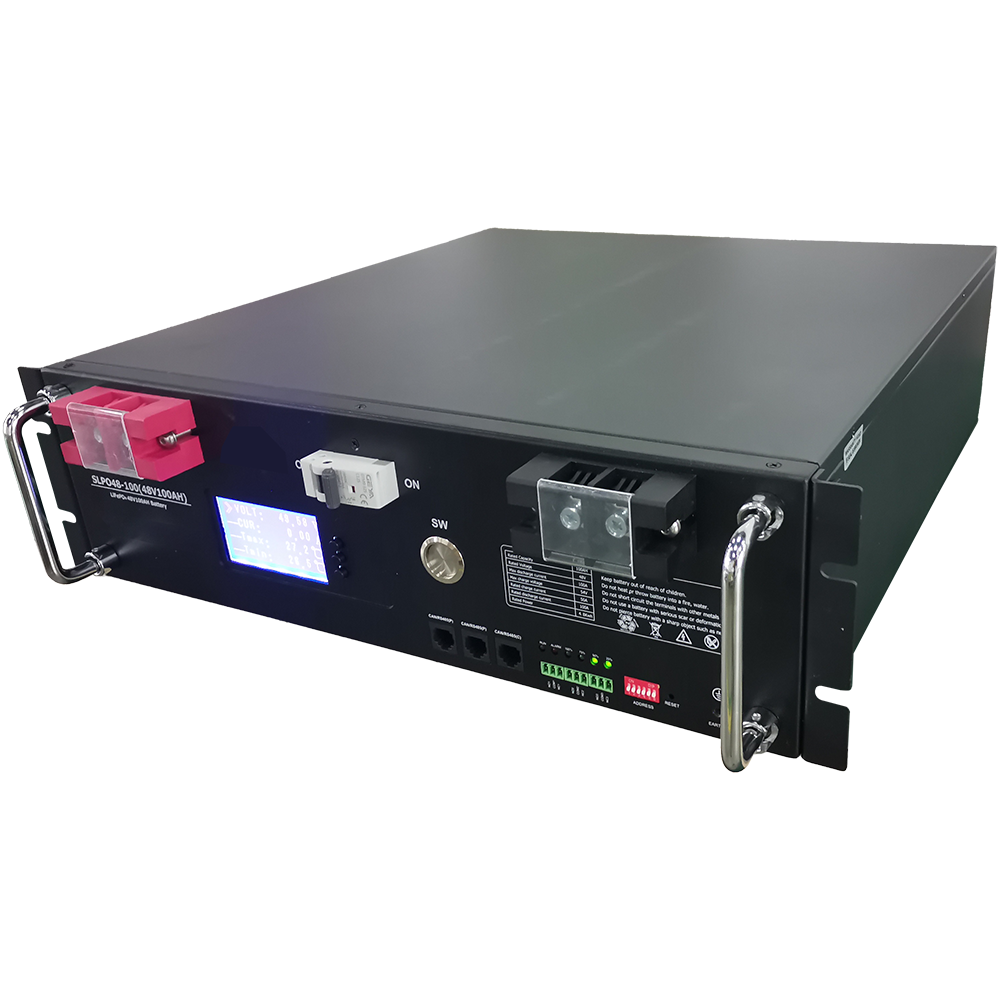

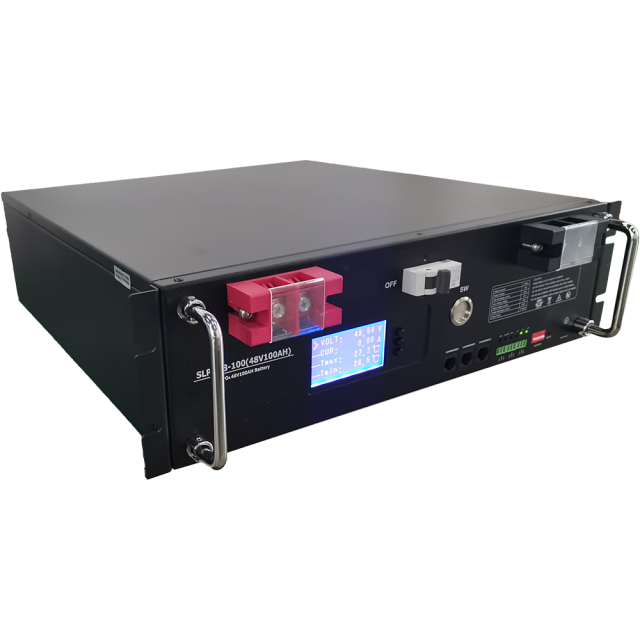

SLPO series is a LiFePO4 (Lithium iron phosphate) battery pack for communications standby applications. The battery pack is enhanced with LiFePO4 battery technology, providing a host of benefits such as extended cycle life, compact design, light weight, safety, and eco-friendliness. Additionally, this battery pack showcases a remarkable ability to adapt to environmental conditions.
The SLPO series battery boasts of a smart battery management and monitoring module that addresses the needs of remote centralized monitoring and remote battery management and maintenance. It provides adequate backup power supply for various access network equipment, mobile communication equipment, transmission equipment, micro-base stations, and microwave communication equipment, making it ideal for unattended use.
Long Cycle Life: Over 4000 cycles at 80% DOD at 25°C.
Fast Charging: Charge rate up to 1C 100A.
Completely Maintenance-free: Saving OPEX.
Hardware Circuit Breaker: 125A DC circuit breaker to control power switching for hardware protection.
Convenient for Various Installation Scenarios: Equipped with feets and movable hanging ears. Install on rack using haning ears or just place it on ground vertically.
LCD Display: The data collected by the smart BMS such as SOC, voltage, current, temperatures and alarms (if any) can be displayed on the LCD screen.
Compatible: Applicable inverter protocols can be selected via LCD. Already includes Victron, SMA, Growatt, Deye, etc
| Model | SLPO48-100 |
| Nominal Voltage | 48V |
| Nominal Capacity | 100Ah |
| Cell Chemistry | LiFePO4 |
| Combination Method | 15S1P |
| Max. Charge Voltage | 54.0V |
| Discharge Cut-off voltage | 40.5V |
| Max. Charge Current | 100A |
| Max. Discharge Current | 100A |
| Standard Charging Current | 50A |
| Standard Discharge Current | 50A |
| Pack Impedance Standard | <100mΩ |
| Charge Temperature Range | 0～60°C |
| Discharge Temperature Range | -20~60°C |
| Storage Temperature Range | -20~45°C |
| Cycle Life | 4000 times @50A, 80% Capacity @25°C |
| Communication Procotol | RS485/CAN |

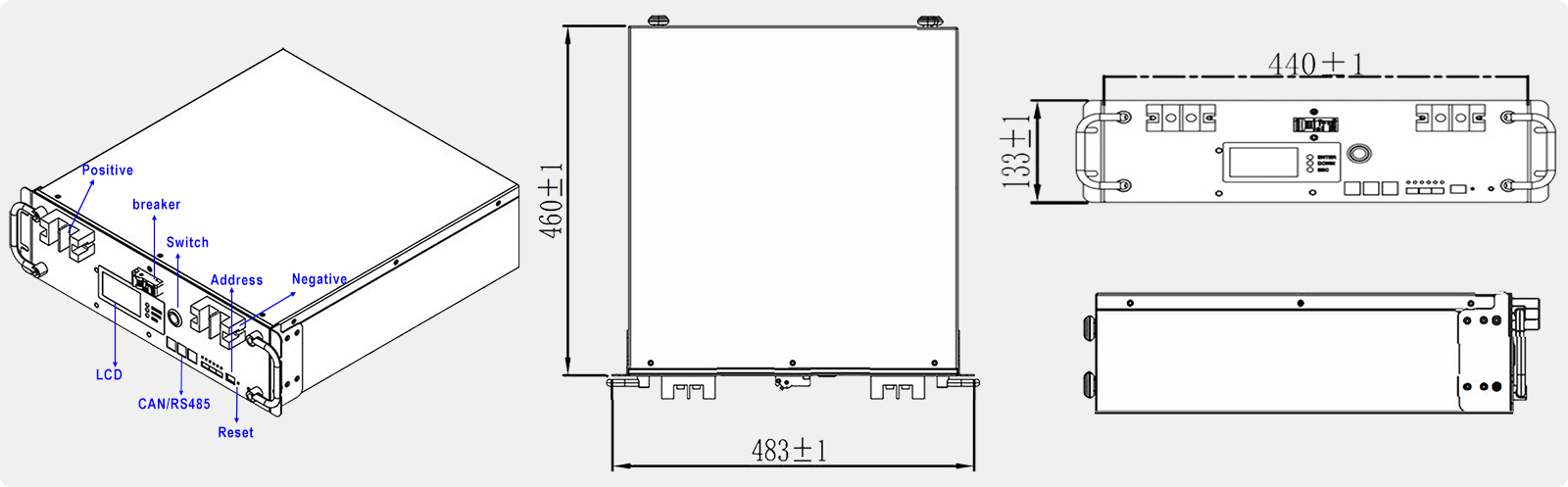

| Dimension (L*W*H) | 460*483*133mm |
| Weight | 46kg |
| BMS | |
| Single Cell Over-charging Cut-off Voltage | 3.7V |
| Over-charging Release Voltage | 3.38V |
| Single Cell Under-discharging Cut-off Voltage | 2.7V |
| Under-discharging Release Voltage | 2.95V |
| Over-discharging Cut-off Current | >105A |
| Over-discharging Cut-off Current Delay | 1S |
| Short-circuit Protection | >400A |
| Condition for the Recovery of Over-current and Short-circuit | Remove Load |
Home solar energy storage system, small and medium-sized commercial and industrial environments, telecom base staion, data center backup power, etc.
