Product Summary:

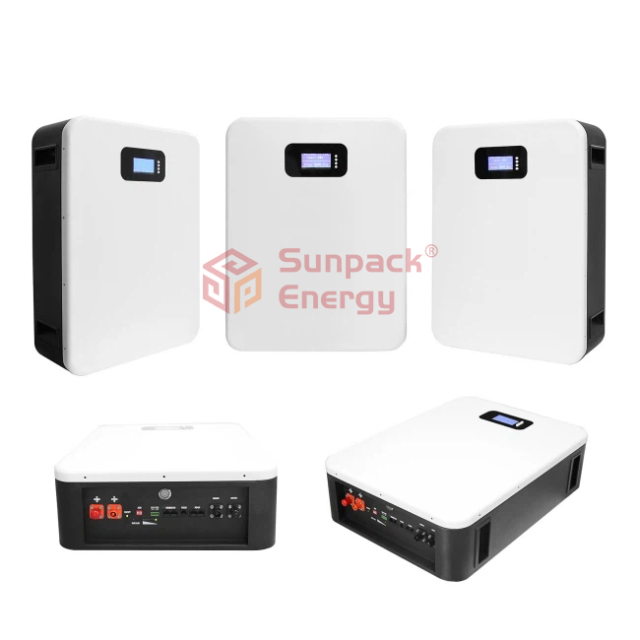

The 5kWh wall-mounted solar energy storage lithium battery is equipped with deep cycle LiFePO4 cells and a high-performance comprehensive protection BMS. With the ability to support multiple parallel configurations of up to 12 units, it offers a free combination of capacity and provides a flexible and effective power system solution for solar lithium batteries. The compact and slim design allows for easy wall mounting, saving precious home space.
Key Features:
Compact and Sleek Design: Wall mounted, easy to install, conserving valuable space.
Scalable: able to support multiple parallel configurations of up to 12 units, providing flexibility and efficiency.
Long Cycle Life: Can last for over 6000 cycles, while the calendar life can span over 10 years.
Intelligent BMS: The intelligent Battery Management System (BMS) ensures comprehensive protection for battery performance through advanced features like over-voltage, under-voltage, over-current, and over-temperature protection. Its smart technological features ensure both optimal performance and enhanced safety for your battery.
Outstanding Compatibility: Utilizing standard communication protocols such as CAN and RS485, our product integrates effortlessly with a wide range of inverters from renowned brands that are currently available on the market.
User Friendly: With LCD display, you can easily view real-time device parameters at a glance. In addition, the accompanying app offers the option for monitoring the battery's healthy usage as well.
Technical Parameters:
| Battery Type | LiFePO4 |
| Nominal Energy | 5.12kWh |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 100Ah |
| Operating Voltage Range | 44.8V~57.6V |
| Max. Output Power | 5kW |
| Max. Charging Current | 100A |
| Max. Continuous Discharge Current | 100A |
| Cycle Life | 6000 cycles at 80%DOD |
| Parallel Quantity | Maximum 15pcs |
| Designed Life-span | 10 years |
| Installation | Wall Mounting |
| Communication | RS485/CAN/Ethernet/WiFi |
| Charging Temperature Range | 0~50℃ |
| Discharging Temperature Range | -20~60℃ |
| Operation Humidity | ≤85% |
| Heat Management | Air cooling |
| Operation Altitude | ＜2000m |
| Application | Indoor |
| IP Rating | IP54 |
| Inverter Choosing | On/Off Grid Single/3 phases inverter |
| Suitable Inverter Brand | MEGAREVO/GOODWE/GRWT/SAM/SUNGROW |
| Certification | UL1973, IEC62619,CE61000, UN38.3 |
| Dimensions | 440*182*600mm |
| Weight | 54kg |
| Port Definition | |
| Positive + | 2* Fast plug-in connector, Orange 6, 25mm2 |
| Negative - | 2* Fast plug-in connector, Black 6, 25mm2 |
| RS485/CAN | Communicate with inverter, (in parallel if inverter is available) |
| RS485 | Communicate with the upward modules (for modules in parallel) |
| RS485 | Communicate with the downward modules (for modules in parallel) |
| RUN | System running status |
| On/off | Power on/off switch |
| LCD Display and setting button | Display battery information and working mode setting |
| LED indicators | SoC indicator, operation status indicators, system alarm |
| ADD switch | BMS assign module’s ID automatically |
