The Sunpack 12V20Ah LiFePO4 lithium ion cell battery for electric golf trolley is a superior replacement for lead acid batteries, thanks to its cutting-edge LiFePO4 technology. With its exceptional safety features and extended lifespan, this Li-ion battery can withstand regular deep discharges without compromising performance. Choose from our selection of 12.8V batteries ranging from 16Ah to 22Ah, or opt for a customized solution tailored to your specific voltage, capacity, current, and dimensions requirements.
Features:
Built-in BMS---The advanced BMS offers a wide range of battery protection features that include over-voltage, under-voltage, over-current, and over-temperature protection. This highly intelligent system contributes to the safety and optimal performance of the battery.
Lighter weight, maintenance free---No explosive gases are present, unlike lead-acid batteries. Also, the weight is significantly lower than standard batteries.
Longer battery life---2x to 4x service life compared to lead-acid batteries.
Consistent charging and discharging performance, minimal self-discharge rate, and zero memory effect.
Replacement for lead acid batteries---Without altering the charge and discharge framework.
Technical Parameters:
| Model | SPF12V20-ST |
| Nominal Voltage | 12.8V |
| Nominal Capacity | 20Ah |
| Energy | 256Wh |
| Dimension | L181*W77*H168mm |
| Weight | 2.7kg |
| Charge Cut-off Voltage | 14.6V |
| Discharge Cut-off Voltage | 10.0V |
| Maximum Charge Current | 5A |
| Maximum Continuous Discharge Current | 30A |
| Internal Resistance | ≤30mohm |
| Cycle life | 2000+ times |
| Duration | 24 holes |
| Housing Material | ABS |

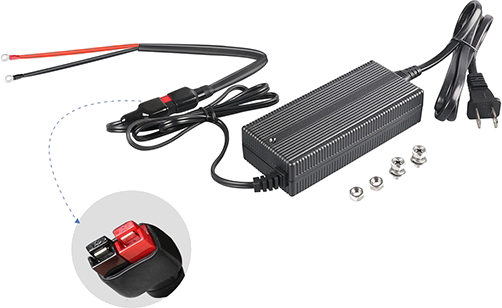

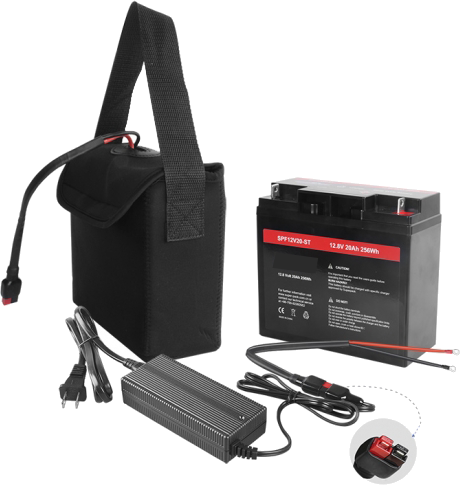

| Accessories | T-bar, bag and 12V3A charger |
